BASIC 355 EASY LIFE, thanks to a special gearcase, is able to manage the welding process in a semi-automatic way. The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases. The user-friendly graphic display allows a quick setting of the desired parameters.

The EASY LIFE system can store up to 4000 welding cycles and sum them up into a PDF file. This report can be transferred to a PC/laptop through a USB port.
Possibility to pre-set 50 customized.
The EASY LIFE system data logging now shows the time!

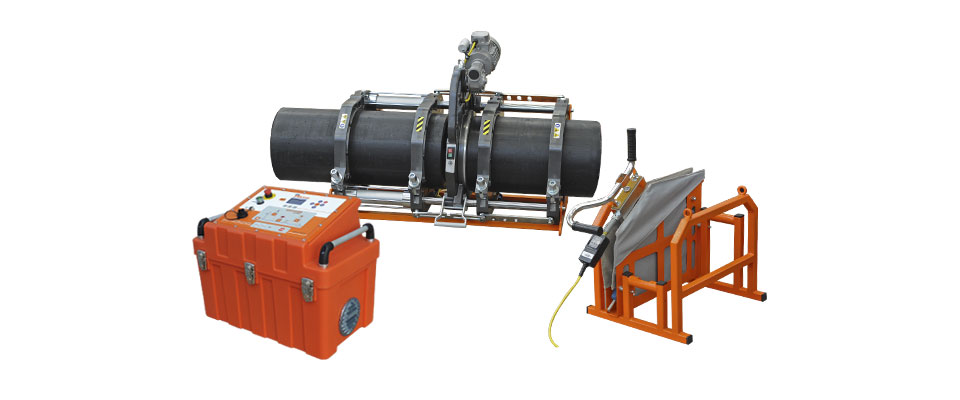

BASIC 355 EASY LIFE
is able to weld fittings such as elbows, tees, Y-branches and flange necks without any additional equipment by simply fixing the clamps’ drag bar.

- A machine body with 4 clamps and 2 hydraulic cylinders with fast non-drip couplings
- An extractable heating plate
- An extractable milling cutter, with safety micro-switch
- An electrohydraulic gearcase EASY LIFE
- A hydraulic hoses with non – drip quick couplings
- Adapters SMARTLocK (RITMO patented)
Ø 4” IPS ÷ 14” IPS; 125 ÷ 315 mm, Master adapters Ø 250 mm

ON REQUEST (ACCESSORIES)
- Tool for flange necks;
- Trolley;
- Rollers;

Technical features:

Materials
HDPE - PP - PB - PVDF

Working range
Ø 4” IPS ÷ 14” IPS - 125 ÷ 355 mm

Power supply
230 VAC 50/60 Hz

Gearcase absorbed power
1100 W

Total absorbed power
5800 W

Memory
4000 reports

Working temperature
356° ÷ 536° F - 180° ÷ 280° C

Pressure working range
0 ÷ 150 bar

Weight standard composition
476 lb - 216 Kg

Weight machine body
220.5 lb - 100 Kg

Dimension machine
42,4” x 20" x 28” - 1077x510x715 mm

Dimension gearcase
23” x 15.1” x 18.2” - 585x384x463 mm
