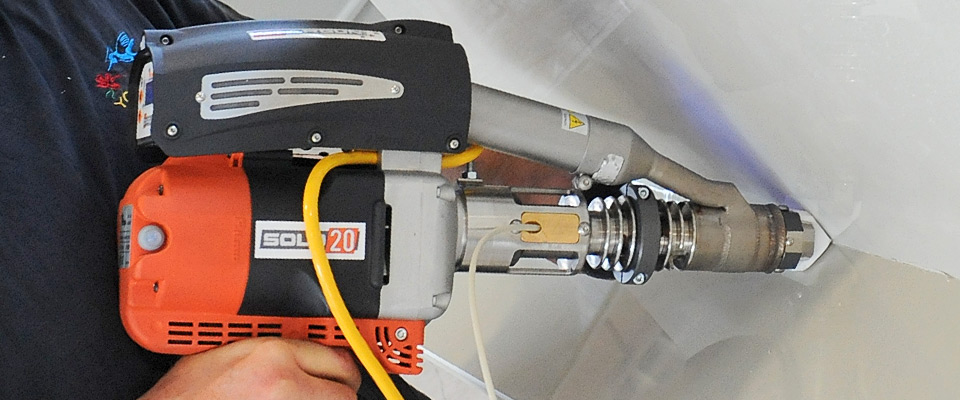

Stargun SOLO 20 is an essential extruder able to perform quality weldings. Solid, compact, reliable, the extruder is equipped with a motor potentiometer for the speed adjustment and a security system “motor block” to prevent cold starts. The temperature control is on the blower and can be set on the control panel. - Backlight Display
- Double LEDs for the lightening of the welding area
- Potentiometer; security system “motor block/cold start”
- Single T° thermoregulator: air
- Rotating handle
- 360° rotating welding shoes. Easily replaceable. Standard equipment
SOLO 20, transport case and extruder support;
- Rotating welding shoe mod. 90° - a 7 mm cod. 86777821
- Rotating welding shoe mod. V Flat 10/12 mm cod. 86777830 On request
Wide range of welding shoes

Technical features:

Materials
HDPE/PP

Rod
Ø 1/8” - 5/32” 3 - 4 mm


Output up to
4.8 lb/h (2,2 Kg/h) HDPE rod Ø 4 mm; 5/32”


Dimensions
450 x 310 x 100 mm

Weight
15.1 lb (6,85 Kg)

Voltage - Absorpion
230 V - 2700 W

Frequency
50/60 Hz

Sheet
1/16” ÷ 0.8” - 1,5-20 mm

;
•
•
•
