6” to 18” DIPS). Suitable for ISO 21307 High Pressure and ASTM F2620 fusion standards.
HIGH PRODUCTIVITY
INDEPENDENT
DIESEL ENGINE ON-BOARD GENERATOR
VERSATILE
- Working range
from Ø 6” to 20”IPS
from Ø 6” to 18” DIPS
from Ø 200 to 500 mm
- Materials: HDPE, PP
- Manual controls
- Tracked welding machine
- Drives over 30% slopes
- In-ditch/user friendly
- Controlled welding cycle
- In-ditch hoses/cables 23 ft range/length
- Remote control track up to 100 m 328 ft
ACCURATE
- Designed to weld according to:
ISO 21307 High Pressure
ASTM F2620 standards
- Removable auxiliary panel to control facer/heating plate
- Easily welds fittings/quick set-up time
- Heating plate with a high temperature resistant protection casing
- Spotlights on welding area
- Insert with fast-locking system
COMPLETE
- Self-propelled on track
- Patented System to open/close clamps
- Heating plate with hydraulic movement
- Facer with hydraulic movement
- Hydraulic side rollers
- Facer with safety microswitch
- Self-contained generator on-board
- Heater/facer on-board
TOTAL CONTROL

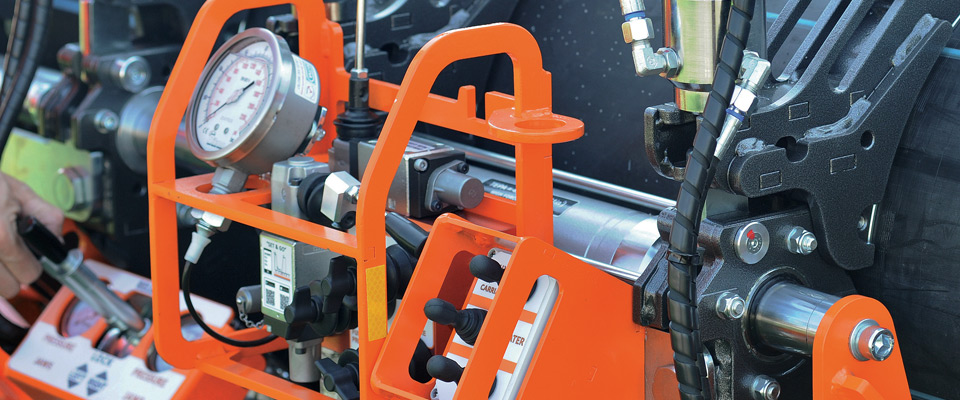

- Intuitive manual controls
- Removable Control Panel for Hydraulic Facer and Heating Plate
- Control panel to lift side hydraulic rollers
- On request control panel for hydraulic clamping
WIRELESS
The wireless control allows the operator to always move the tracked welding machine safely and guarantees better
management during the positioning
SAVE TIME - SAVE MONEY
Easy access for the maintenance compartments.
Change oil filter, checking fuses, and routine checks are quick and easy to perform.
TECHNICAL FEATURES
Working range
200 ÷ 500 mm
6” ÷ 20” IPS
6” ÷ 18” DIPS
Materials HDPE, PP
For other materials contact RITMO S.P.A.
On board generator 1123 cc - 17 kW
Emmission compliance EPA US TIER 4 FINAL, UE STAGE V
Fuel Diesel Fuel tank 43 Litres (11.3 gal)
Autonomy 12 Hours
Hourly consumption max 3.6 Liters (1 gal)
Max operator side noise 79 dB
Tracks driving speed 1.5 Km/h or 3 Km/h (0.93 mph or 1.86 mph)
Width of tracks 250 mm (9.8")
Max operating slope 30%
Max dimensions on site (W x D x H) Body machine
1437 x 1350 x 1461 mm 4.7 x 4.4 x 4.8 ft
Max dimensions on site (W x D x H) Remedy 500 standard composition
2818 x 1806 x 1961 mm 9.2 x 5.9 x 6.4 ft
Max dimensions on shipping (W x D x H)
2818 x 1806 x 1349 mm 9.2 x 5.9 x 4.4 ft
Weight body machine with facer and heating plate
560 Kg (1234 lb)
Weight Remedy 500 standard composition
2250 Kg (4960 lb)
- ;
-
-
-
-
-
