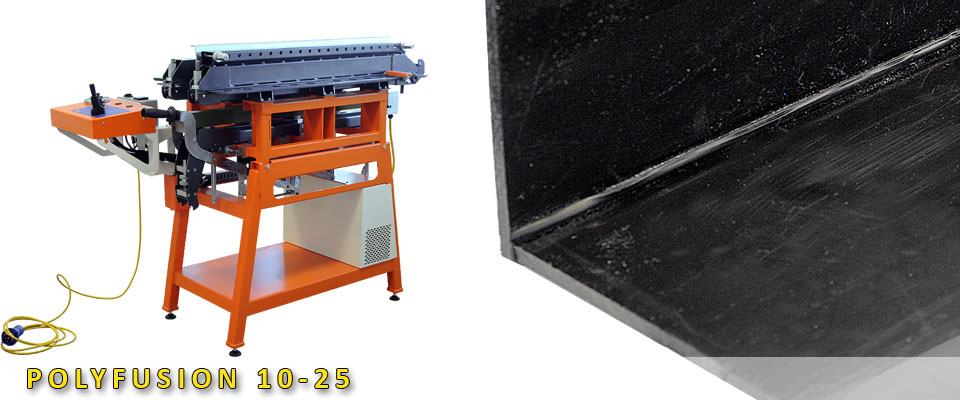

POLYFUSION 1.0-25 is a compact and easy to use manual welder for HDPE and PP sheets up to one meter wide and 0.08" ÷ 1" (2 ÷ 25 mm).
The welding cycle is handled by a control panel which commands the hydraulic gearcase; “Dual Pressure” welding is also feasible. The control panel can be adjusted horizontally to assist the operator.

The sheets are fixed to the machine body by manual handwheels; the locking arm has an articulated joint that allows its opening and the easy extraction of the welded sheets. The working surface of the machine body has a graduated scale on both sides, which speeds the positioning and centering of the pieces to be welded.

The manual heating plate, located under the machine body, has a height adjustment handwheel. The temperature is controlled by a built-in high-precision electronic thermoregulator, “Digital Dragon”.

The welding machine has a small modulated sustaining frame to perform 90 ° weldings. Circular welding is possible with an optional device, being the minimum achievable diameter of 300 mm (ref. to thin sheets).

The machine can also weld twin-wall HDPE sheets.

There’s a practical shelf at the base of the steel frame, which can be used to place some tools.

Materials: HDPE/PP
Max. working width 39.37" - 1000 mm
Min. weldable thickness - 0.08" - 2 mm
Max. weldable thickness 1" - 25,4 mm

Types of welding: Line, 90°, Circular

Power supply 230 V Single Phase 50/60 Hz (on request 110 V)
Max. absorbed power 1710 W

Pressure working range    0 ÷ 150 BAR

Dimensiones 606x374x472,5" - 1540x950x1200 mm
Weight 540 lb - 245 Kg
